Teknobag-Draimad Package

COMPACT DEWATERING PLANT

All-in-One Dewatering Solution: Plug-and-Play Efficiency

To meet market demands, TEKNOFANGHI offers the TEKNOBAG-DRAIMAD® system in a package version. This compact and fully equipped dewatering plant provides an efficient, cost-saving solution for sludge treatment.

Key Features

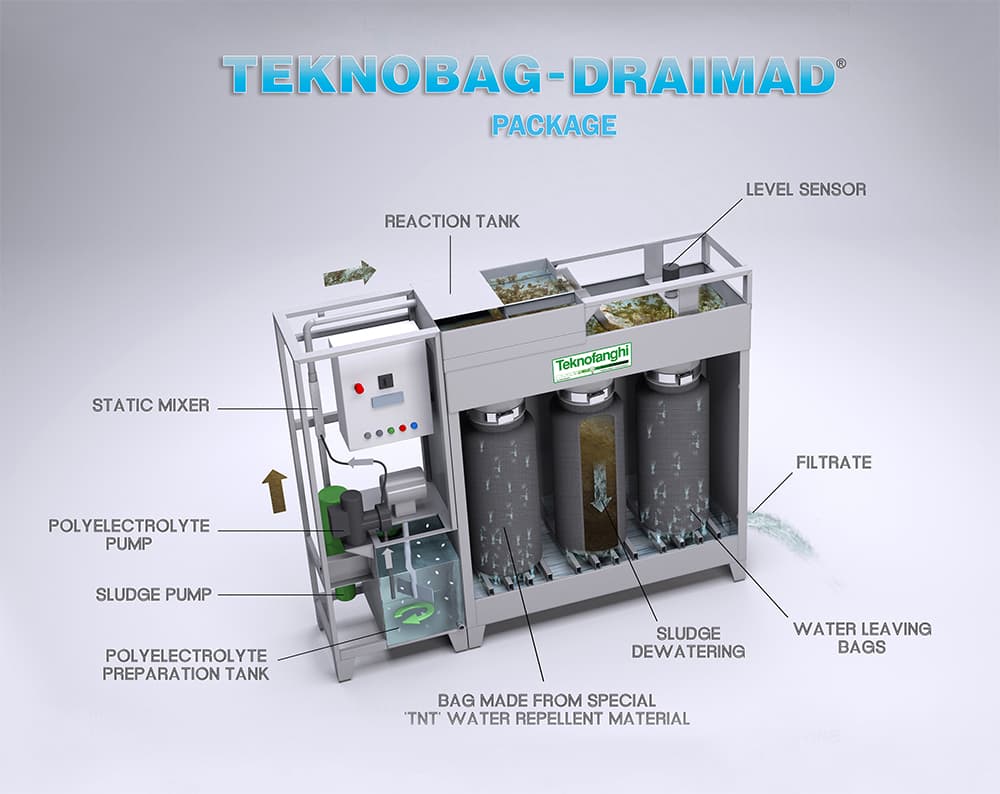

The package includes:

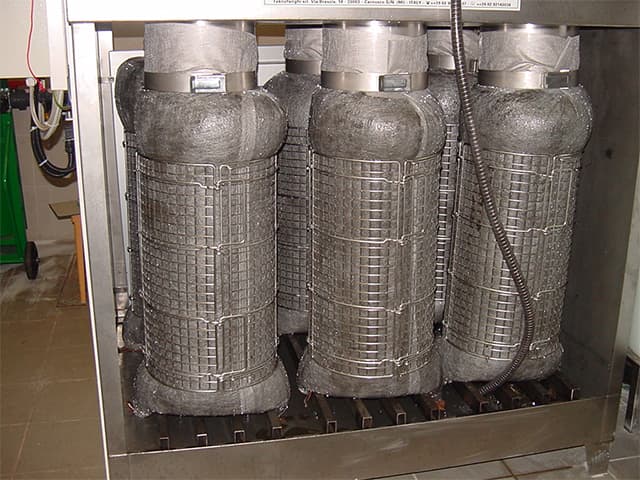

  • Bag-module for effective sludge dewatering.
  • Polymer preparation unit and polymer dosing pump for optimized sludge conditioning.

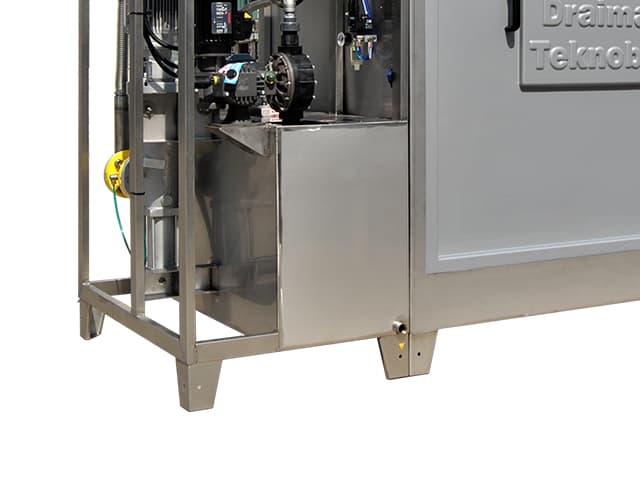

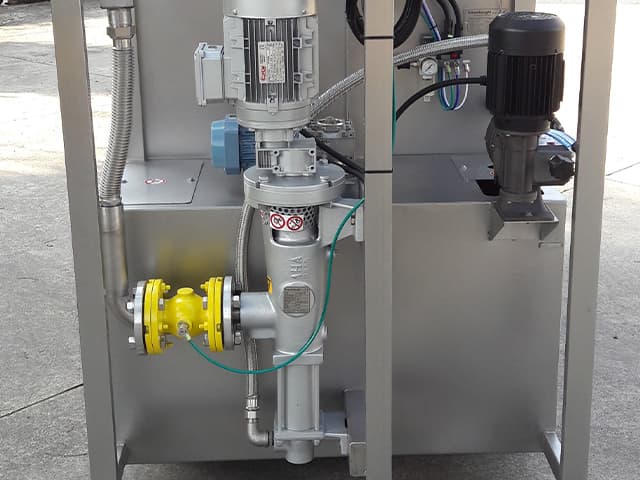

  • Sludge feed pump and inline mixer for precise operation.
  • Level probe for monitoring.
  • Control panel for seamless plug-and-play functionality.

The TEKNOBAG-DRAIMAD® Package combines all essential components into one compact system, offering exceptional performance and ease of installation for diverse sludge dewatering applications.

TYPICAL APPLICATIONS:

  • Municipal wastewater up 4000 P.E.
  • Resorts, hotels and camping
  • Industrial wastewater
  • Chemical industry
  • Food and beverage
  • Dairy farms and slaughterhouses
  • Wineries and breweries
  • Drinking water, river and lake water
  • Mineral, ceramic, glass

MAIN ADVANTAGES:

  • Plug & play solution
  • Fully automatic
  • Up to 70-80% DS
  • Ø water consumption
DEWATERING

The TEKNOBAG-DRAIMAD® Package delivers efficient sludge dewatering results. After just a few hours of operation, with proper sludge conditioning using polyelectrolytes, dry solids (D.S.) contents of 15-30% can be achieved, depending on the sludge type.

The volume of dewatered sludge varies based on the solid content of the raw feed sludge. For example:

  • With raw sludge containing 1% dry solids, the system can process up to 20 m³/day.

This performance makes the TEKNOBAG-DRAIMAD® Package an ideal solution for optimizing sludge treatment efficiency in compact dewatering plants.

DRYING

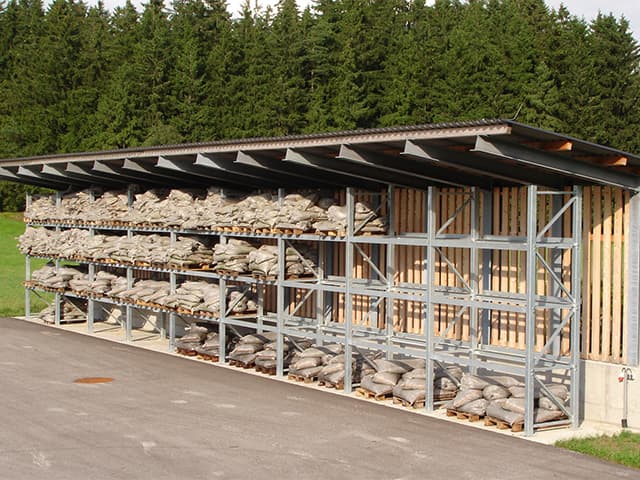

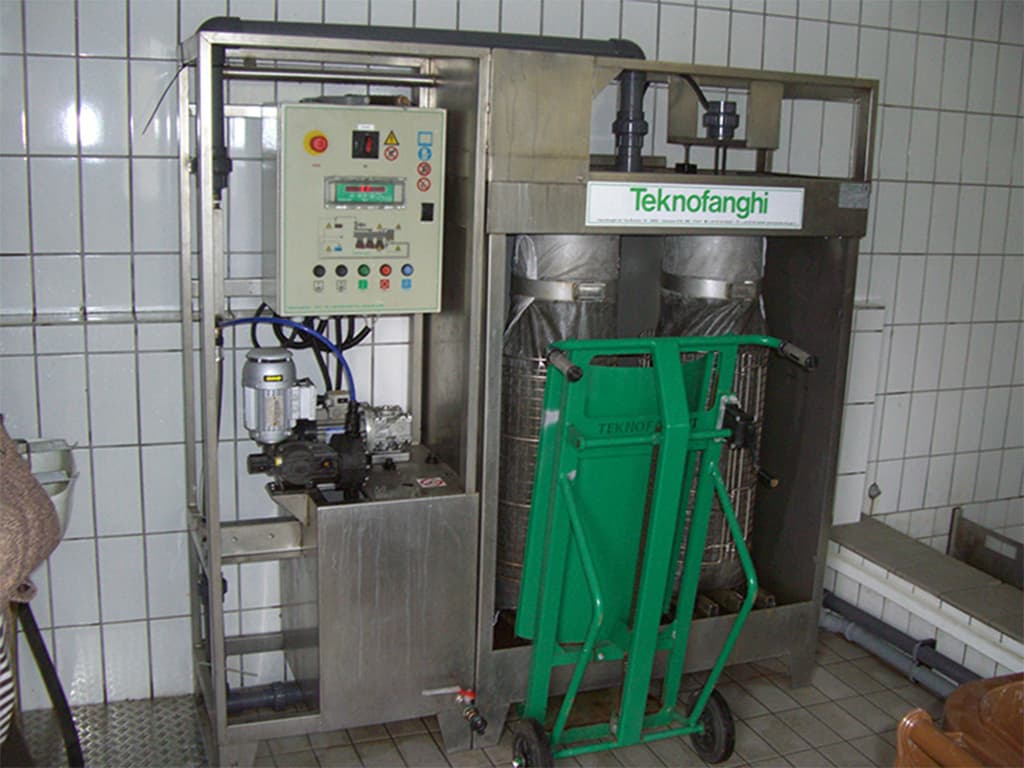

After the initial dewatering stage, the bags are sealed, removed using a special bag trolley, and stored in the open. During this secondary phase, the sludge weight and volume continue to decrease, regardless of weather conditions.

Key features of the drying process include:

  • Water-Repellent Material: The bags are made from a special material that prevents rainwater from entering while allowing dehydration through evaporation.
  • High Dry Solids Content:After two months, the sludge achieves a minimum of 50% dry solids content.
    With extended storage, the content increases to 70-95% dry solids.

For example, 1 m³ of sludge with 1% solids content will, after two months, produce a cake with 50% dry solids content, weighing only 20 kg—a 50-fold reduction in the original weight.

This efficient drying process enhances the performance of the TEKNOBAG-DRAIMAD® Package, making it a sustainable and cost-effective solution for sludge treatment.

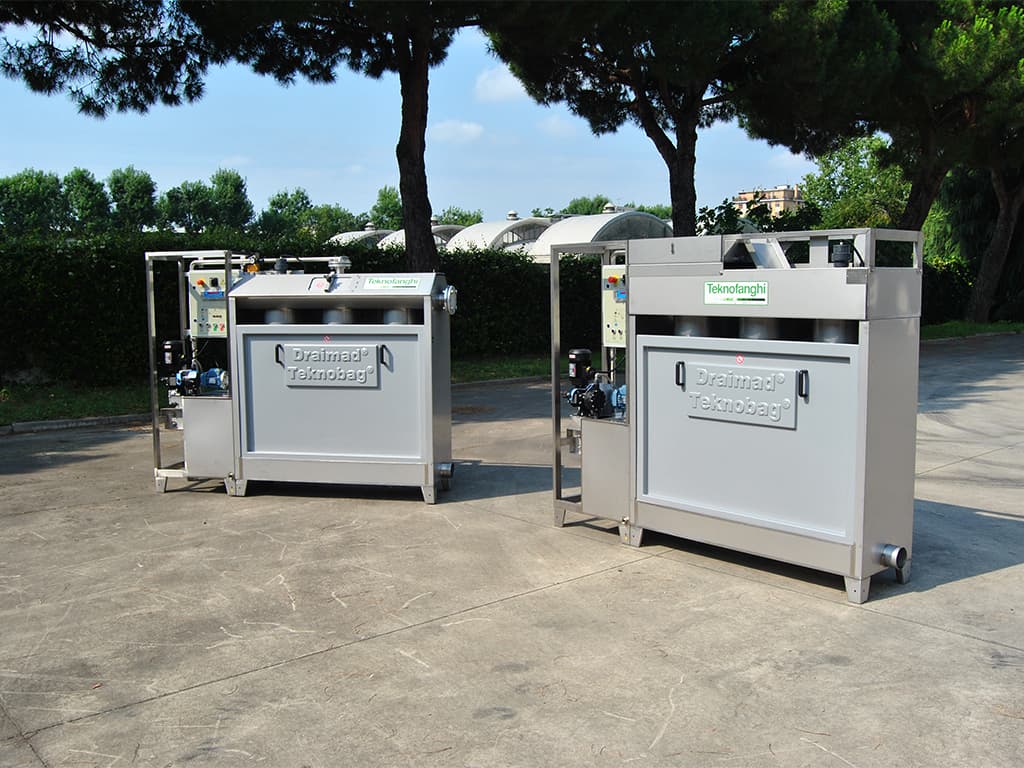

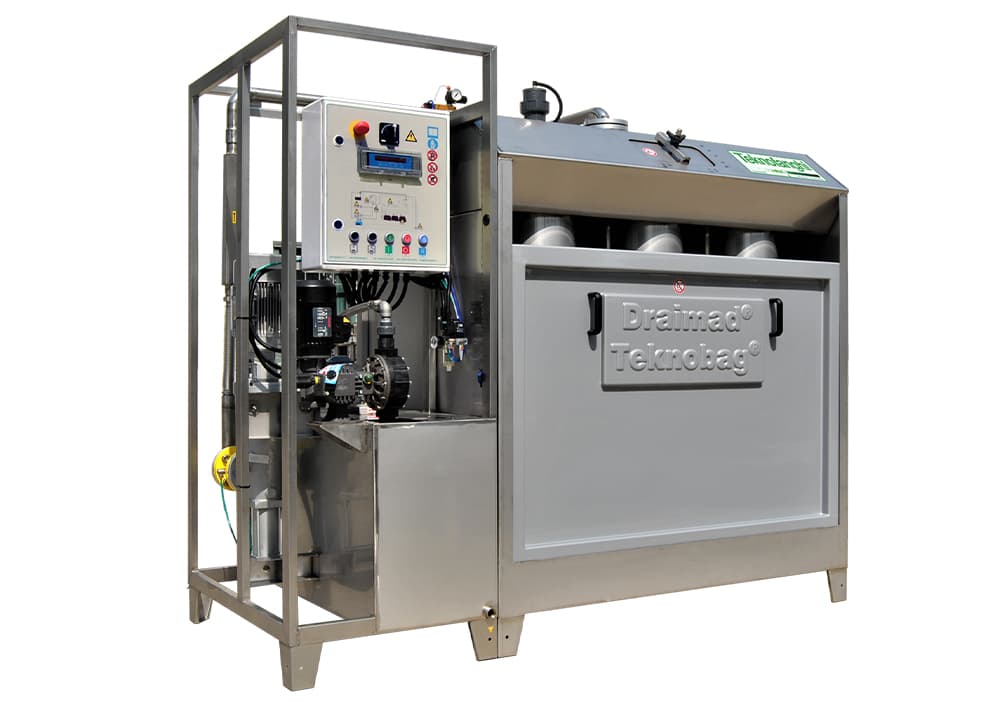

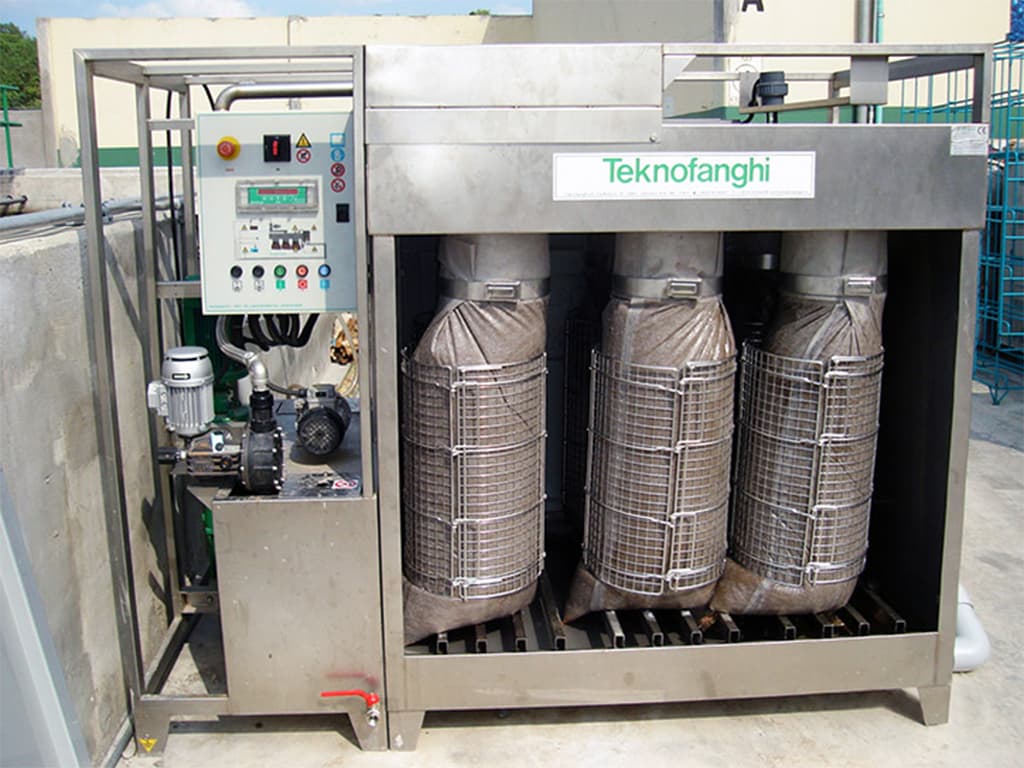

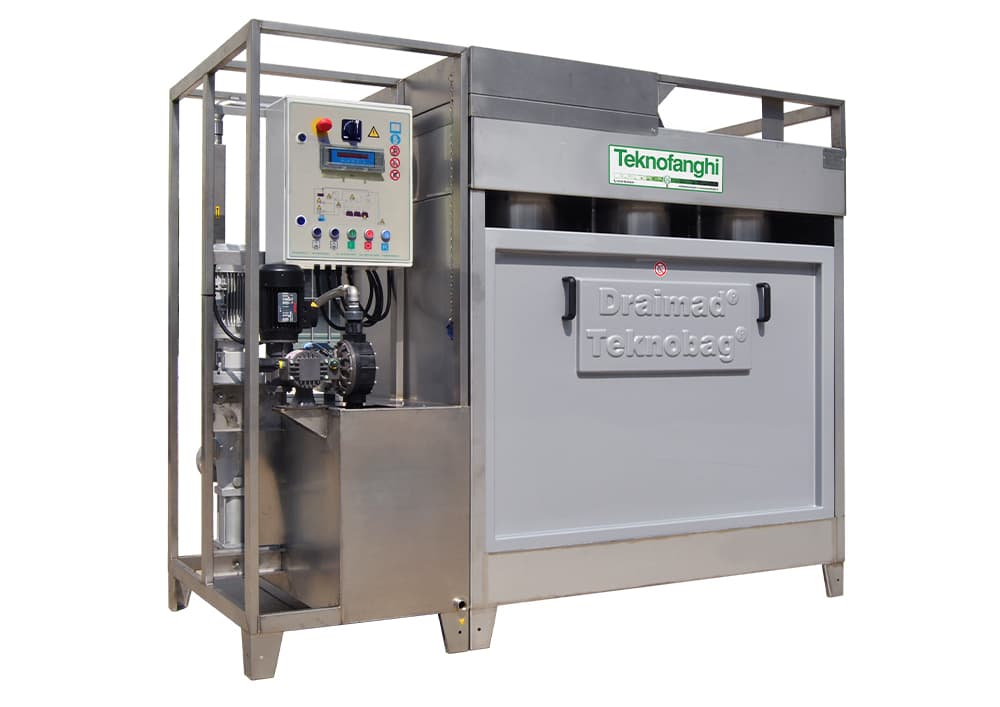

TEKNOBAG-DRAIMAD Package

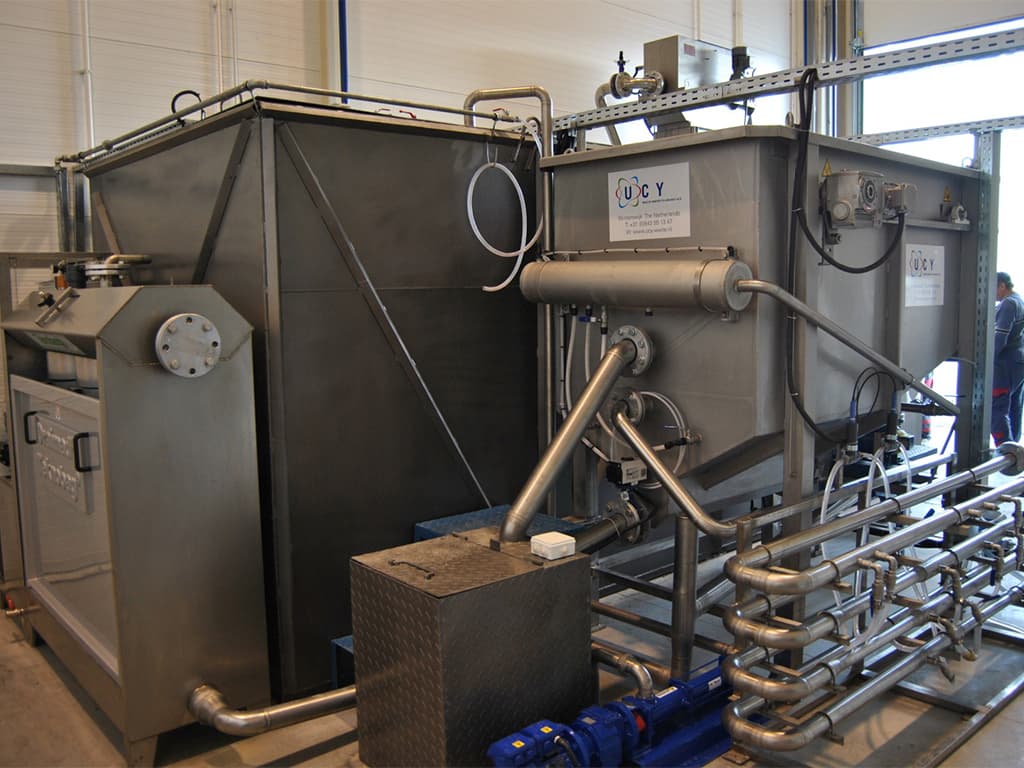

Pressurized TEKNOBAG-DRAIMAD Package

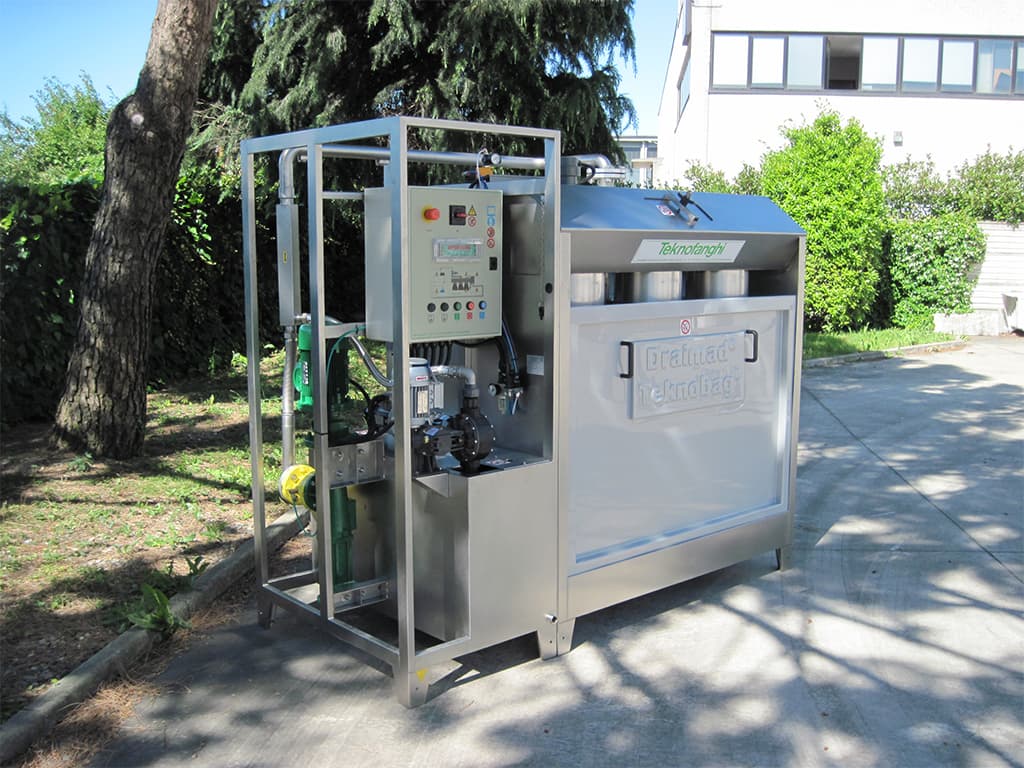

PLUG AND PLAY

The TEKNOBAG-DRAIMAD® Package is delivered as a fully assembled and tested unit, ensuring minimal installation time and costs. This ready-to-use design makes it an ideal solution for:

  • Small communities
  • Hotels and holiday villages
  • Small industrial facilities

Thanks to its simple installation and maintenance, the PACKAGE system has quickly gained popularity in markets that require efficient, compact, and cost-effective sludge dewatering solutions.

MONEY SAVER

The TEKNOBAG-DRAIMAD® system is an ideal solution for sewage plants serving up to 4,000 People Equivalent (PE). It provides a simple, cost-effective, and efficient dewatering solution with a rapid return on capital investment.

Key benefits include:

  • Minimal Energy Consumption: Power is only required during the bag feed process, which typically lasts 1-2 hours per day, significantly reducing operational costs.
  • Economic Efficiency: The system's low maintenance and operational requirements make it a highly economical choice for small and medium-sized wastewater treatment facilities.

The TEKNOBAG-DRAIMAD® Package offers exceptional value, delivering long-term savings without compromising performance.

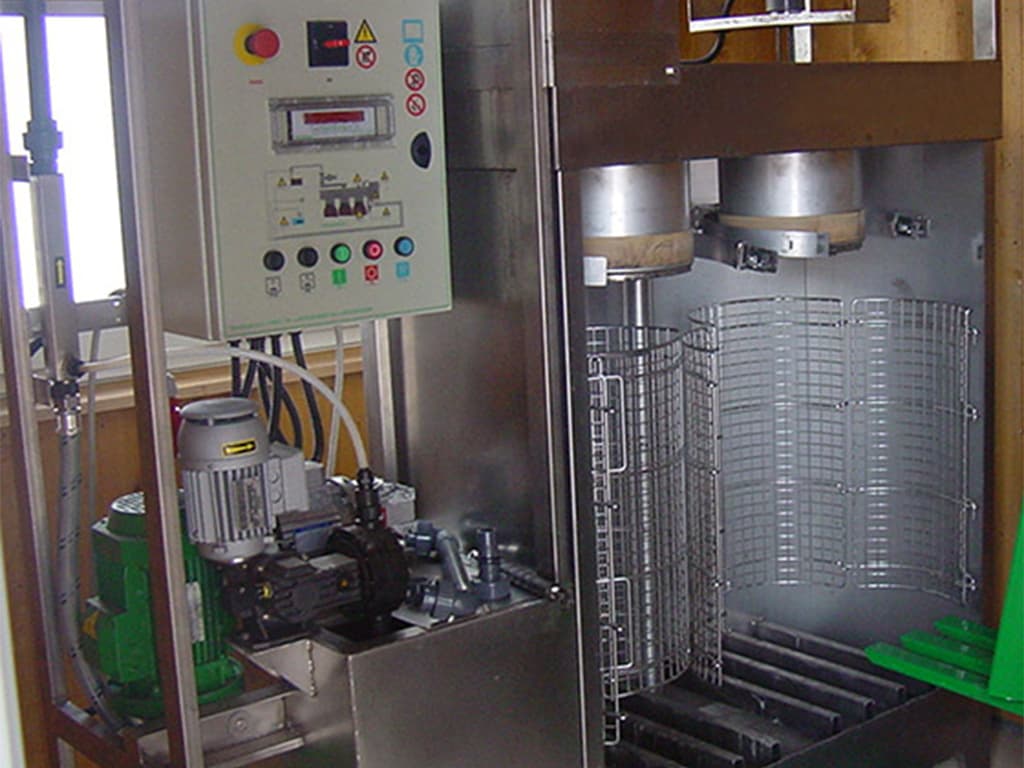

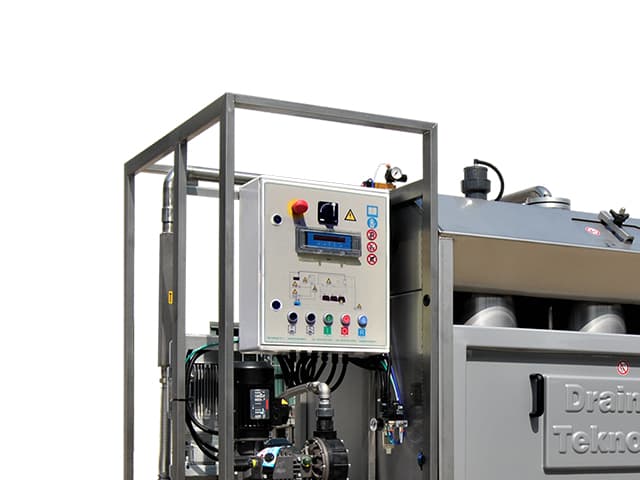

CONTROL PANEL

In the automatic models of the TEKNOBAG-DRAIMAD® Package, manual tasks are limited to removing full bags and fitting new ones. The entire system’s operation is efficiently managed by a control panel, equipped with a digital unit for seamless functionality.

Key features include:

  • System Monitoring: The control panel oversees the entire process to ensure optimal performance.
  • Alarm Detection: It identifies critical issues such as:First filling taking too long.
    Refill duration exceeding limits.
    Damaged bags.

This advanced control panel enhances reliability and simplifies the management of the TEKNOBAG-DRAIMAD® system, making it a user-friendly solution for sludge dewatering.

THE IMPORTANCE OF ORIGINAL SPARE PARTS

Documentation for a correct maintainance.
